Faster Deployment, Greater Reliability, Lower Maintenance
This paper examines the implications of a fully integrated linear drive system. By consolidating sensors, control electronics, and drive components into a single compact unit, integrated motors reduce setup time, simplify supply chains, and improve system reliability. Advanced features are enabled through this tight integration, such as low-latency closed-loop control and high-fidelity haptic effects that are difficult to achieve in traditional modular systems. Beyond technical performance, these systems lower the total cost of ownership by minimizing cabling, reducing maintenance needs, and extending service life. This analysis highlights how integrated designs create new opportunities across manufacturing, automation, and other fields where compactness, precision, and durability are critical.
Traditional linear motors require external components like position sensors, electrical drives, controllers, cabling between these components, and software to tie everything together. By contrast, fully-integrated linear motors integrate essential sensors, amplifiers, and logic controllers into a single device. This consolidation of separate system components reflects a broader trend driven by advancements in integrated circuits and silicon technologies. As industries demand faster development cycles, higher reliability, and systems that can be deployed without deep hardware expertise, fully integrated linear motors offer a clear advantage. They reduce complexity for engineers, broadened accessibility for users who may not have specialized motion control knowledge, and enable advanced capabilities that modular systems lack.
Definitions
Haptics: Derived from the Greek word haptikós, meaning “to touch” or “to grasp.” Haptic technology simulates the sense of touch through a device that serves as an interface between a user and a system [1]. Examples of haptic effects include spring forces, constant force, virtual walls, damping, inertial forces, and oscillations.Low Latency: Low-latency refers to a delay with minimal duration, with the duration which qualifies being somewhat dependent on the use case, as the term is used in a number of contexts including networking, audio, hardware, and software [2].
Closed-Loop Control: A control method that continuously adjusts system operation by monitoring the output, comparing it to a desired setpoint, and modifying the input to minimize discrepancies. This process enhances system accuracy and reliability [3].
IP68 Protection: An ingress protection rating defined under IEC 60529. The rating indicates complete protection against dust (rating 6) and resistance to continuous immersion in water under conditions agreed upon between the manufacturer and the user (rating 8) [4].
What is a Fully-Integrated Linear Motor
A fully integrated linear motor is a compact, all-in-one linear drive system that contains its own motor driver, controller, and advanced suite of force, position, and temperature sensors within a sealed enclosure. Traditional modular systems, by contrast, do not communicate independently; all of their sensing, logic, and communication are handled by external components. In a traditional system, these external components must be sourced, connected, and calibrated individually, with each interface adding additional wiring, introducing points of failure, mechanical complexity, and latency between components.
In an integrated design, all of these functions are contained inside the linear motor itself. Power is supplied through a single DC connection, and all sensing and control loops are managed internally. The result is a compact linear motor with pre-calibrated components that requires minimal setup and operates without the compatibility concerns of modular systems.
 |

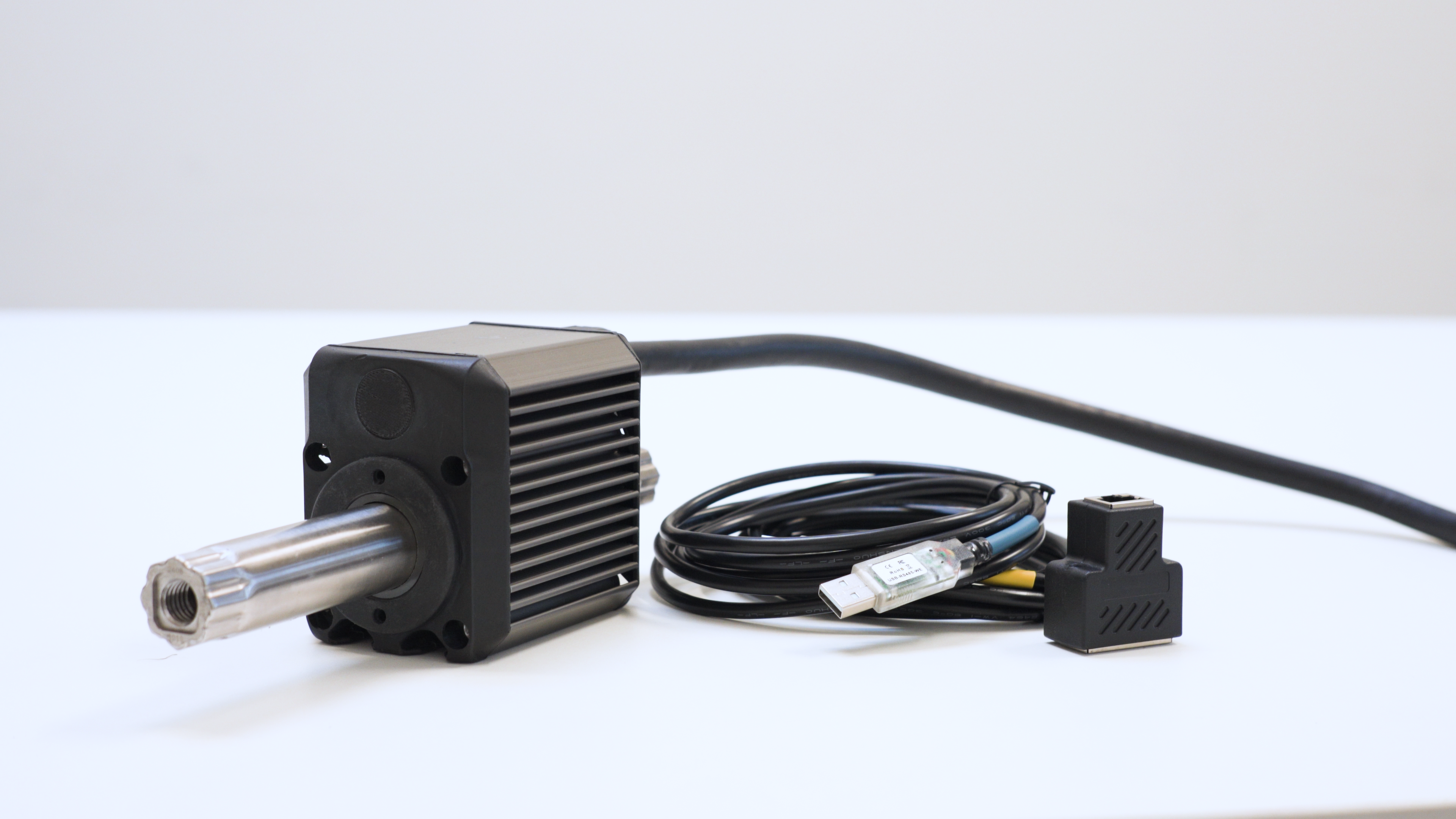

| Components Required to Setup an ORCA Series Smart Linear Motor |
Technical Advantages of an All-In-One Linear Actuation System
Simplified Integration & Accelerated Deployment
An all-in-one drive system design saves engineers valuable development time and money in several ways. It eliminates the need to source various components from different suppliers, integrate them, calibrate them so they communicate efficiently with one another, and test for compatibility. Traditional linear motors with external auxiliary components require specialized knowledge to set up, additional wiring, and often require days to install.
 |
 |

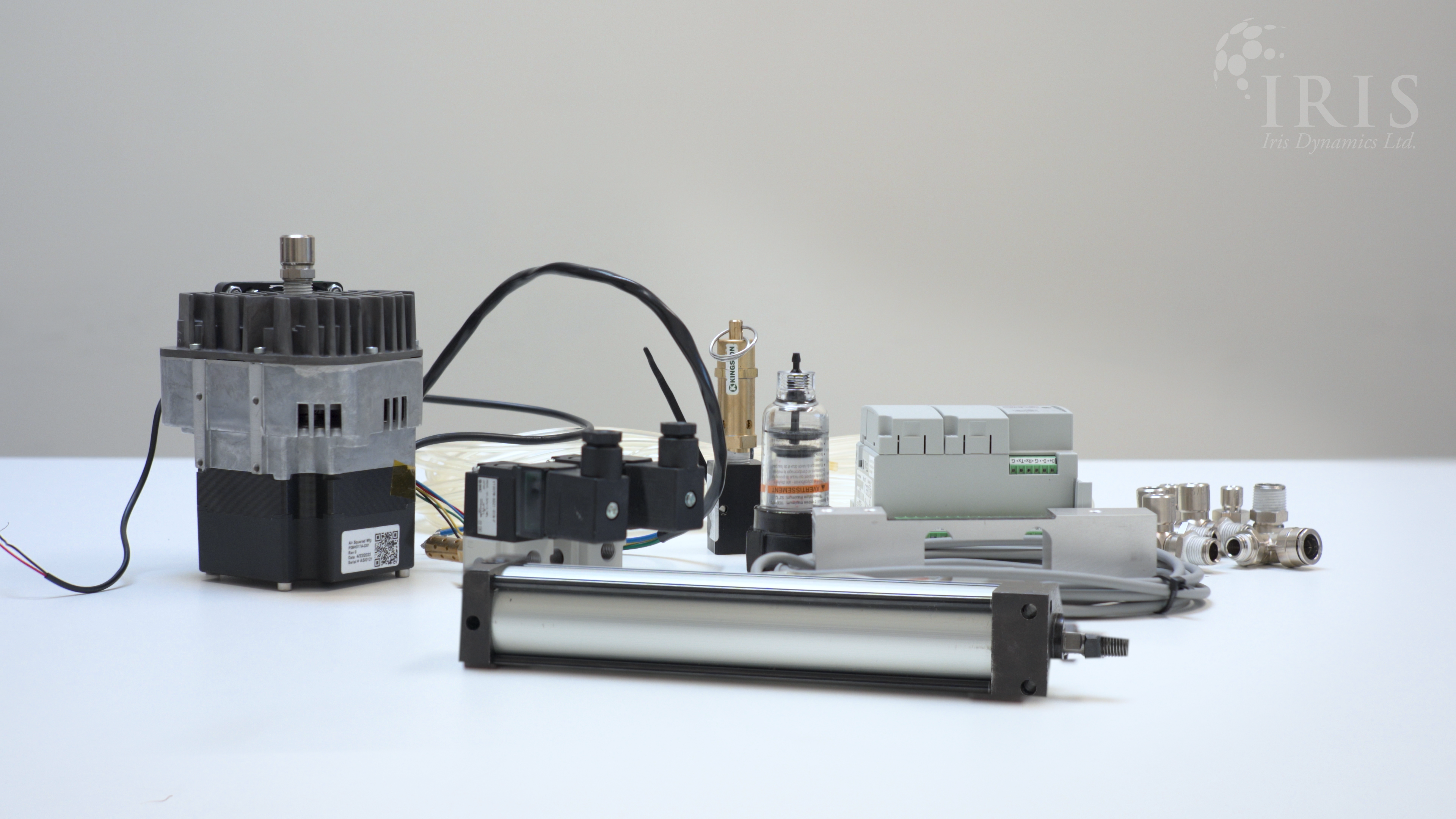

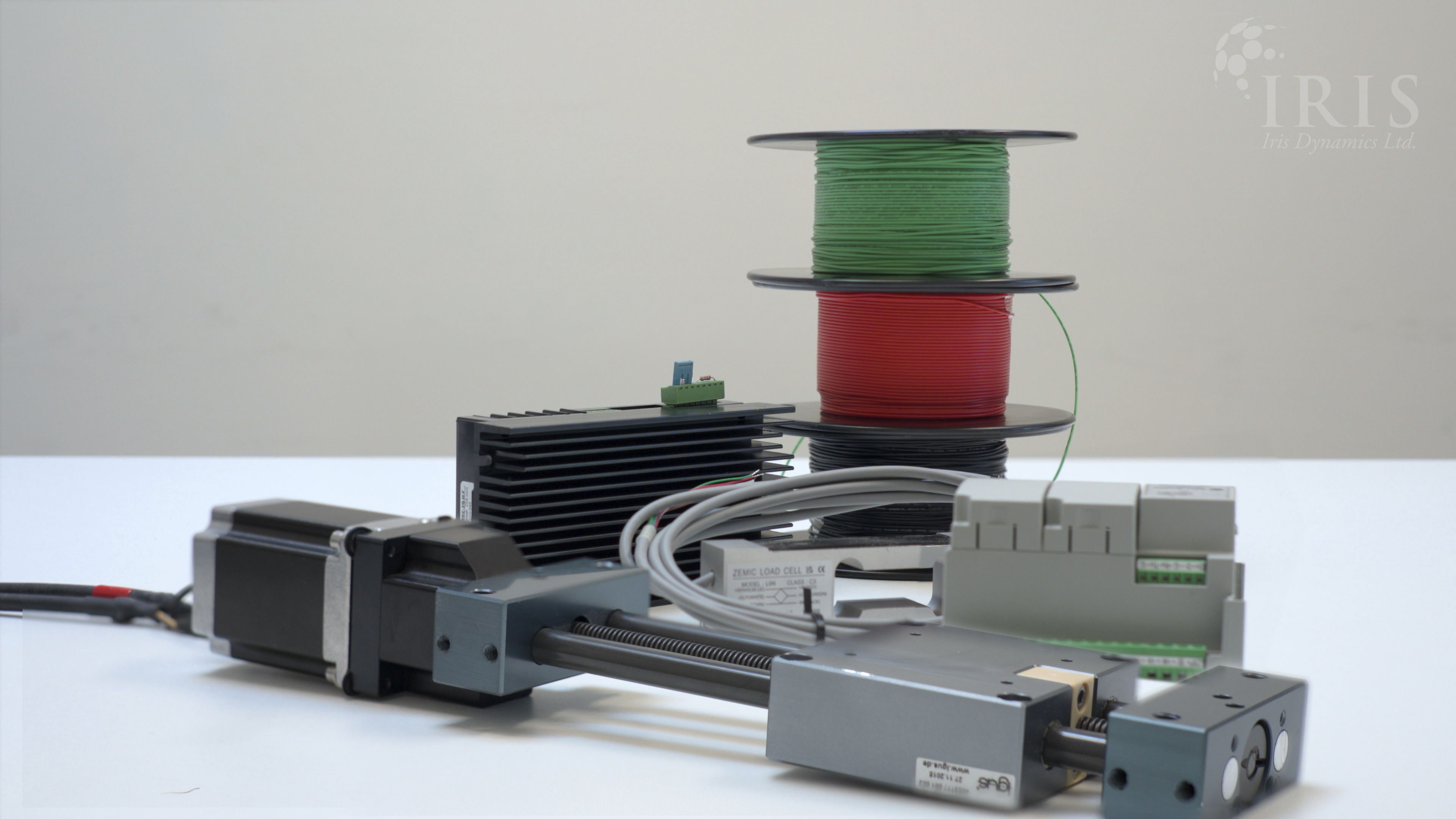

| Components Required to Setup a Pneumatic Actuator | Components Required to Setup a Leadscrew Actuator |
A fully integrated linear motor offers a plug-and-play solution. All auxiliary components, including motor drivers, controllers, sensors, amplifiers, and additional cabling, are built into the motor in a compact package and are pre-calibrated during manufacturing. Setup time is reduced from days to minutes, requiring no specialized expertise to get the motor up and running and enabling programmers or integrators to deploy advanced actuation systems quickly. Due to their tight integration, all-in-one linear motors can remain compact units, reducing wiring overhead and fitting easily in space-constrained applications. ORCA motors can function as drop-in replacements for pneumatic systems, integrate seamlessly with existing software, and support various interfaces including Python, C++, Modbus RTU, MATLAB, LabVIEW, and PWM modules.
Enhanced Performance: Low Latency Enables high-Fidelity Haptics
Position and force sensors, controllers, and drive electronics are designed and calibrated together during manufacturing, eliminating communication delays and compatibility issues that arise in traditional modular systems. Every component is tuned to work seamlessly as a single system, which improves both responsiveness and stability. ORCA motors’ closed-loop architecture enables real-time sensing and control, with sub-millisecond response times suitable for highly dynamic applications. Integrated position and force sensing provide continuous feedback to the control loop, improving accuracy and stability compared to systems where sensors and controllers are externally connected. Low-latency control not only enhances precision, responsiveness, and consistent performance but also enables advanced effects such as high-fidelity haptics, smooth damping, vibration control, complex oscillations, dead stops, and more.

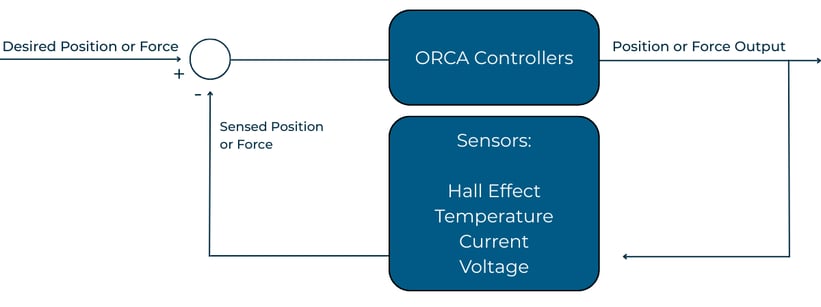

ORCA Motors' closed-loop architecture
Less Points of Failure Leads to Increased Durability & Reliability
With a fully integrated linear drive system, the number of failure points is greatly reduced. The ORCA motor design features a single moving part, the stainless steel shaft, engineered to minimize mechanical complexity and maintenance. Fully epoxy potted and sealed to IP68 standards, ORCA motors are rugged, reliable, and environmentally protected from dust, water, oils, and other common industrial contaminants. This level of durability extends service life, with the only replaceable component being the bushings. Replacement bushings cost $2 (two bushings per set), and bushing lifespan varies by use case, but in ideal conditions with minimal side loading, bushings last for over 1 million cycles. Learn more about replacing ORCA bushings here. Maintenance requirements are significantly reduced and can also be predicted through data logging of force, position, speed, temperature, power, and voltage, allowing users to identify wear, tear, and degradation early. This enables teams to act proactively, addressing issues before they lead to failure and cause downtime, disruptions, or potential safety hazards.

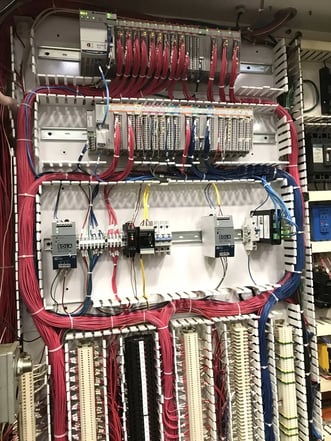

Cable Management of Traditional Linear Motor Systems
The cabling requirements in an all-in-one solution are simplified, with power supplied through a single DC-level connection that does not require shielding or carry high-voltage switching signals. The sensor cables themselves are also shielded, carrying either digital or analog signals that need protection from potential noise sources. These cables complicate installations, require close attention to detail, and are generally expensive. Smart linear motors address this by replacing these cables with short copper traces on their integrated circuit boards. This reduces both the complexity and fragility of the wiring, further improving reliability and long-term durability.
Economic Benefits
This simplified architecture and reduced system complexity lead to lower integration costs, lighter labour requirements, and reduced operating expenses. Fewer components to source, wire, and configure translate directly into reduced integration costs during both design and deployment. With fewer cables, connectors, and no exposed electronics, maintenance requirements are reduced, service intervals are extended, and the risk of unplanned downtime decreases significantly. When considered across the entire lifecycle, the total cost of ownership of a fully integrated solution is typically lower than that of a conventional system. Initial savings come from reduced integration effort, and long-term savings come from improved durability, simplified maintenance, and minimized downtime.
High Impact Application Area
Manufacturing & Industrial Automation
Manufacturing and automation environments demand motion systems that are reliable, easy to deploy, and capable of running continuously with minimal intervention. Traditional modular linear motor systems often require lengthy setup, complex cabling, and ongoing calibration, slowing deployment and increasing downtime. Fully integrated linear motors address these challenges by arriving as complete, pre-calibrated units that can be installed and brought online within minutes. Integration also improves reliability in production settings where downtime translates directly into lost throughput. With fewer external components and a sealed, rugged design, the risk of failure is reduced and maintenance requirements are minimized. Predictive data logging further supports preventive maintenance programs, allowing issues to be identified before they interrupt production.
Performance gains are equally important. Low-latency closed-loop control delivers precise and repeatable motion, enabling tighter process control and higher product quality. Advanced features such as smooth force regulation, vibration control, and high-bandwidth actuation create opportunities for automation tasks that require both speed and accuracy. Manufacturing and automation teams can deploy systems faster, operate them more reliably, and achieve better control over critical processes, all while lowering integration costs and reducing the burden on specialized engineering staff.
Final Thoughts
The move toward fully integrated linear motors represents more than a design choice. It reflects a shift in how motion systems are built, deployed, and maintained. Integration reduces the overhead of setup and long-term servicing while enabling performance characteristics that modular architectures cannot match. By making advanced actuation simpler to adopt and more reliable in operation, integrated systems expand who can use this technology and what can be built with it. They create space for teams to focus on innovation instead of hardware integration, and they open the door to applications that were previously too complex or costly to pursue.
