Replacing Pneumatic Actuators with Integrated Electric Linear Motors

Pneumatic actuators have long been favoured for their simplicity and responsiveness in industrial automation. However, recent advancements in electric linear actuator technology, such as the ORCA™ Series Smart Linear Motors, offer compelling advantages in repeatability, lower maintenance requirements, programmability, precision, simplicity, and environmental performance. This white paper explores the technical and practical considerations involved in replacing pneumatic systems with modern electric actuators.

Traditional actuations such as hydraulic and pneumatic systems are used in countless applications, across various industries, performing vital tasks in factories and complex systems such as robotics, material handling, food processing, and more. While hydraulic systems are known for their high precision and power, pneumatic systems are valued for their speed and simplicity, though they typically offer less precise control. Despite their widespread use, pneumatic actuators come with inherent limitations and challenges, including; low repeatability and high maintenance, limited precision, complex integration, unpredictable behaviour in dynamic environments, and high noise outputs. With advances in smart motor technology, electric linear actuators are becoming a practical and often superior alternative, functioning as a simple drop-in pneumatic replacement offering higher efficiency with a lower total cost of ownership.

Overview of Pneumatic Actuation Systems

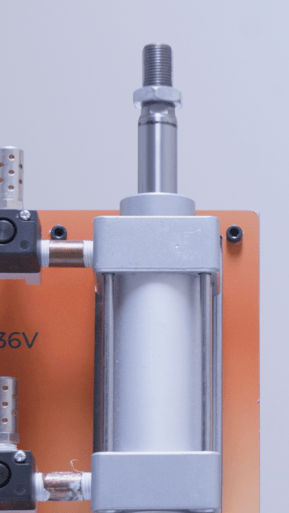

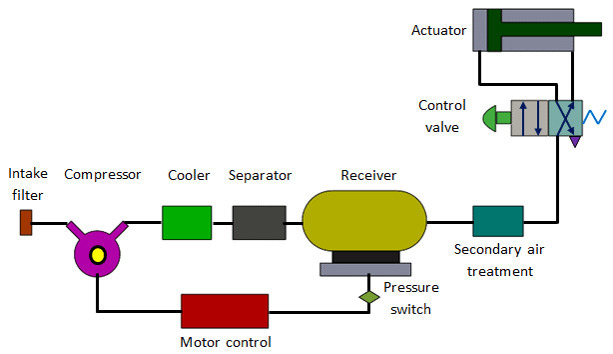

Pneumatic actuators use compressed gases, typically air, to convert pressure into mechanical energy. Unlike fluids, gases are compressible, making them suitable for systems requiring flexible energy transmission. In practical applications, machines that operate using vacuum or pressurized air are categorized as pneumatic systems. These systems rely on a continuous supply of compressed air, which is provided by a compressor. The compressor draws in atmospheric air, compresses it, and stores it in a high-pressure reinforced steel tank known as a receiver. From there, the air is distributed through a network of valves and pipes to power various components of the system. The main components of a pneumatic system include; control valve, cylinder, compressor, sensor, filter, and reservoirs/receivers.

As the initial air is gathered from the atmosphere by the filter, this air contains contaminants such as dust, smoke, and humidity. The filter functions to separate impurities, as they can cause degradation to the system and high humidity can cause corrosion. An air compressor then converts mechanical energy into compressed air, which heats up during compression and requires a cooler to lower its temperature. This air is stored in a reservoir and distributed through pipes to maintain a steady supply. The control valve directs airflow to the cylinder, controlling load movement based on its position. Due to the complexity and wear-prone components, pneumatic systems require ongoing maintenance to ensure reliability and efficiency.

Challenges with Pneumatics

1. Repeatability

While pneumatic actuators offer advantages in speed and simplicity, they are inherently limited in applications requiring high repeatability and precision, such as CNC machining, dispensing systems, automated welding systems, and more. Due to the compressible nature of air, even minor fluctuations in supply pressure, flow rate, or ambient temperature can lead to inconsistencies in actuator stroke length, velocity, and force output. System factors such as valve response time, air line length, and the presence of leaks or pressure drops further contribute to positional variance. Unlike electric or servo-driven actuators, which allow for closed-loop control and fine positional accuracy, pneumatic actuators typically operate in open-loop configurations with less consistent cycle-to-cycle performance.

2. Precision

Pneumatic actuators inherently lack the precision required for high-accuracy applications due to the physical properties of compressed air and the limitations of system control. As air is a compressible medium, variations in pressure and temperature can lead to inconsistent force output and actuator motion. Delays in valve actuation, air line length, and internal friction within the cylinder introduce further variability in stroke performance. These factors result in limited positional accuracy, often with tolerances of ±1 mm or more, which is insufficient for tasks that require fine control.

3. High Maintenance Requirements

Multiple components and moving parts introduce more opportunities for wear and tear, and mechanical failure. Compressors are prone to overheating and wear, while control valves can degrade due to frequent switching. Pipes and fittings may leak, or lose pressure over time, and the reservoir is vulnerable to internal corrosion. Without regular maintenance, these issues can lead to reduced system efficiency, and ultimately breakdown.

4. High Total Cost of Ownership

Oftentimes when considering the benefits of pneumatic systems, low cost is seen as a highly advantageous feature of the system. They are oftentimes seen as a cost-competitive solution, as the initial cost for the actuator itself can range from $200-$1,000. However, that does not include installation fees, which can range from $150 - $1,500. In addition to purchasing the unit, and its installation fees, additional costs such as energy consumption to keep the system operating, and regular maintenance/servicing fees.

Electric Linear Motors as a Viable Alternative

Recent innovations in electric actuation technology have made them a practical and competitive alternative to pneumatic systems. Modern designs now match or exceed pneumatics in speed and responsiveness, while offering added benefits like programmable motion characteristics, precise control, and near-silent operation. With simplified system integration and real-time feedback capabilities, electric actuators are increasingly suited for dynamic, high-performance applications that previously relied on compressed air.

Technical Comparison

The below table outlines general specifications of pneumatic actuators, against the electric ORCA Series Smart Linear Actuators.

The Advantage of Going Electric

Electric linear actuators offer several key advantages over pneumatic systems, including higher precision, improved repeatability, and reduced maintenance due to the absence of air compression systems and fewer moving parts. They support closed-loop control for accurate positioning, enable quieter operation, and eliminate the need for compressors, valves, and extensive tubing. Electric systems are also easier to integrate into digital control architectures and can provide safer, more compliant motion when paired with the right control strategies, making them ideal for applications that demand consistency, flexibility, and reliability.

Overview of ORCA Electric Motors

ORCA Series motors share the fundamental architecture of tubular linear motors: a magnetic shaft driven by surrounding windings to create a virtually contactless, direct-drive mechanism. Like other tubular designs, they offer exceptional speed, quiet operation, and precise control. What sets ORCA motors apart, however, is their fully integrated design—each unit includes onboard sensors (for position, temperature, force, and more), power electronics, and high-speed control logic. This integration simplifies cabling and programming, reduces maintenance demands, and lowers overall system cost.

1. High Repeatability & Low Maintenance

ORCA electric linear motors offer high repeatability with minimal maintenance requirements. Thanks to precise electromagnetic control and the absence of mechanical transmission components like gears or belts, they deliver consistent motion with position accuracy of less than 1 mm with essentially no drift over any number of cycles. The system’s only moving part is the magnetic stainless steel shaft, lending the only serviceable part to be the plastic bushings on either side of the chassis. Generally, pneumatic actuators can only reach speeds up to 1.5 meters per second, in order to maintain control and wear. Electric actuators do not possess that same limitation, with ORCA motors reaching up to 6.5 meters per second with limited concerns over control and wear.

2. Enhanced Safety Through Compliance, Programmable Force Limits, and Backdrivability

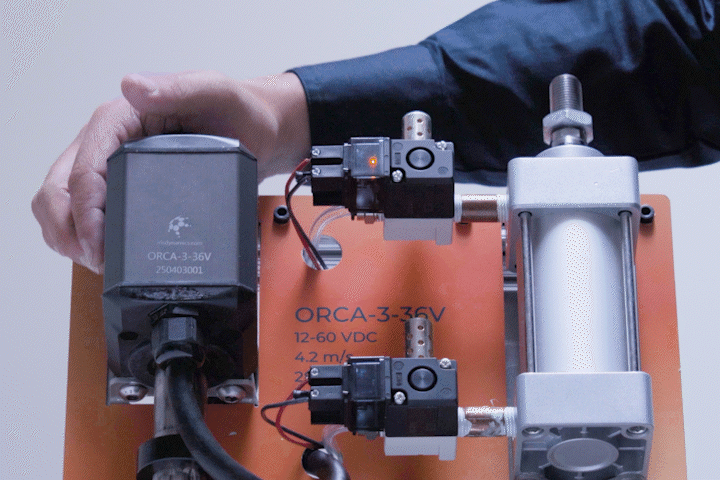

Compliance is essential for safe and effective human-machine interaction. It refers to an actuator’s ability to yield under force, like a spring, allowing for forgiving contact with objects, surfaces, and people. ORCA motors are both backdrivable and compliant. They can yield to external forces while applying force, and their compliance can be finely tuned for the needs of any application. Pneumatic systems also offer some compliance by design. If the user overpowers the amount of force due to air pressure, the cylinder will yield. However, relying on compressed air and rigid control valves still leave room for unpredictably when overloaded. With an ORCA motor, the user can achieve consistent compliance with minimal mechanical complexity through programmable maximum force limits, eliminating the need for external pressure regulators or mechanical compliance tuning. The motor can be configured to yield at a specific threshold (which could even be dynamically programmed), allowing for predictable and safe behaviour during physical interactions.

3. High Precision

Electrical actuators offer significantly higher precision compared to pneumatic systems due to their use of rigid mechanical components and advanced closed-loop control. Equipped with encoders or resolvers, these actuators provide real-time feedback, enabling precise and repeatable positioning. Unlike pneumatic systems, electric actuators maintain consistent tracking regardless of external conditions such as temperature, pressure fluctuations, supply voltages, or external forces like friction. This precise control makes them ideal for applications requiring precise motion control, tight tolerances, and repeatable performance over extended operational cycles.

4. Ease of Integration & Advanced Motion Controls

Unlike pneumatic systems that require multiple external components; compressors, control valves, pressure regulators, and extensive tubing, ORCA electric motors provide a fully integrated solution, where the PID controller, sensor, and driver is baked into the chassis. In addition to the low maintenance requirements, ORCA electric motors offer advanced motion controls including real-time force and position feedback as well as programmable kinematic effects like adjustable damping, virtual springs, and oscillations. Seamless software integration with intuitive GUI-based platforms such as IrisControls allows users to create highly specific and complex motion profiles without the need for mechanical adjustments.

5. Noise & Work Environment

Another important consideration in human-machine applications is the noise pollution generated from actuation systems. Excessive noise can lead to hearing damage, increase stress levels, reduce productivity, and create an unsafe working environment. Typical pneumatic systems operate between 60-90 decibels, as loud as a subway train, whereas the electric ORCA motor operates at 20 decibels, as quiet as a whisper.

Accelerate to Industry 4.0 with Intelligent, Safe, and Efficient Motion Systems

As industries demand greater efficiency in repeatable processes, less downtime, precision, and safety, electric linear actuators have emerged as a viable and often superior alternative to pneumatic systems. With advancements in control, integration, and performance, modern electric actuators offer reduced maintenance, lower operational costs, and enhanced functionality. Whether retrofitting legacy systems or designing new automation solutions, transitioning to electric actuation can deliver measurable gains in reliability, flexibility, and total cost of ownership.
